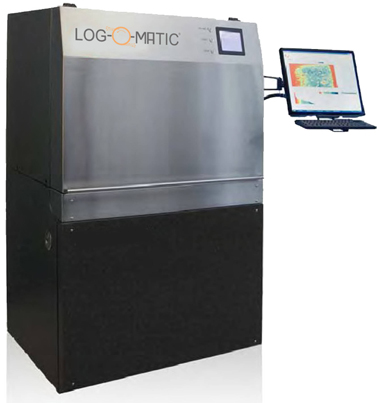

Ingot Lifetime scanning

I am interested in this product

Your Name (required)

Your Email (required)

Contact Number

Product Name

Close Form

I am interested in this product

Your Name (required)

Your Email (required)

Contact Number

Product Name

Close Form

Detailed Specs

– Mapping of carrier lifetime, photoconductivity, resistivity
– Non-contact, non-destructive electrical semiconductor characterisation
– Two dimensional ingot mapping system for solar grade multi silicon
– Measurement time: 2 minutes for two surfaces simultaneously
– One ingot four sides with handling: 5 – 6 min
– Resolution 1 mm
